Belt conveyor is used to convey all kinds of materials in the crushing plant, which reduce the convey cost and convenient to maintenance.
| Input size: | 0-500mm |
| Capacity: | 40-1200tph |
| Material: | Granite, marble, basalt, limestone, quartz, pebble, copper ore, iron ore and any other non-corrosive material |
Belt Conveyors are widely used to convey all kinds of materials in mine, building materials, chemical industry, metallurgy and coal etc,. They can be used under the ambient temperature of -20℃ - +40℃.

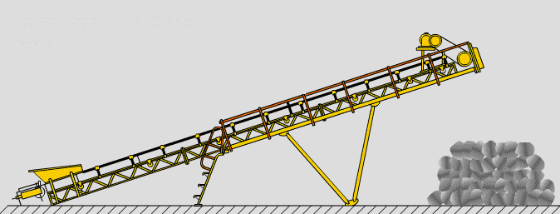

The belt conveyor is a continuous conveyor that uses the conveyor belt as a traction and load-bearing component. The conveyor belt winds around the driving roller and various reversing rollers, and the tensioning device is given a proper tensioning force. Under the driving of the driving device, the friction and tension between the roller and the conveyor belt are made. The conveyor belt is running. The material is continuously fed to the conveyor belt and moved along with the conveyor belt to effect material transport.
1.Large conveying capacity, high stability
2.Low energy consumption and operation cost
3.Capable to convey various kinds of materials
4.Simple structure and installation, convenient maintenance
5.Standardization of components
|
Belt width(mm) |
Conveyor length(m)/Motor power(kw) |
Capacity (t/h) |
Belt speed |
||
|
Ⅰ(L/KW) |
Ⅱ(L/KW) |
Ⅲ(L/KW) |
|||
|
400 |
≤12/1.5 |
12-20/2.2-4 |
20-25/3.5-7.5 |
40-80 |
1.3-1.6 |
|
500 |
≤12/3 |
12-20/4-5.5 |
20-30/5.5-7.5 |
80-190 |
1.3-1.6 |
|
650 |
≤12/4 |
12-20/5.5 |
20-30/7.5-11 |
130-320 |
1.3-1.6 |
|
800 |
≤6/4 |
6-15/5.5 |
15-30/7.5-15 |
280-550 |
1.3-1.6 |
|
1000 |
≤10/5.5 |
10-20/7.5-11 |
20-40/11-12 |
440-850 |
1.3-2 |
|
1200 |
≤10/7.5 |
12-20/11 |
20-40/15-30 |
660-1200 |
1.3-2 |
